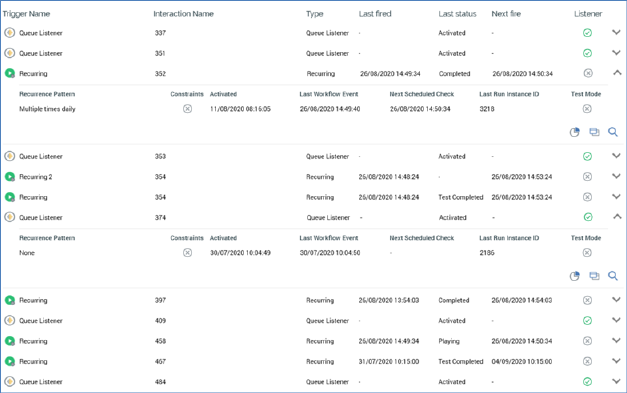

The triggers list is displayed below the header and lists all Active interaction triggers that have yet to fire, and which match the currently-specified filter criteria. Note that manual triggers are only displayed if one or more constraints are attached.
Triggers are ordered as per the header settings, and their details are hidden by default, when the following are displayed for each trigger:
•Icon: denoting the trigger’s type.
•Trigger Name
•Interaction Name
•Type
•Last Fired: the date and time at which the trigger last fired. Not relevant if the trigger is a queue listener.
•Last Status: the status of the most recent workflow to run within the context of the trigger.
•Next Fire: the date and time at which the trigger is next scheduled to fire. Not relevant if the trigger is a queue listener.
•Listener: a tick or cross, demoting whether the trigger is a queue listener.
The following additional properties are displayed when a trigger’s details are being shown:
•Recurrence Pattern: one of the following:
o None
o Multiple Daily
o Daily
o Days Of The Week
o Day Of The Month
o Nth Weekday Of The Month
•Constraints: a tick or cross, which indicates as to whether the trigger has any constraints.
•Activated: the date/time at which the trigger was first activated.
•Last Workflow Event: the date/time at which the trigger's most recent workflow event occurred.
•Next Scheduled Check: the date/time at which the Node Manager will next check if the trigger needs to be fired. Not relevant if the trigger is a queue listener.
•Last Run Instance ID: the workflow instance ID assigned when the trigger last ran.
•Test Mode: a tick or cross indicates whether the trigger was activated in Test mode
•Buttons:
o Open Workflow Results: displays the trigger's workflow results in the Results Window.
o Open Interaction: opens the trigger's parent interaction in the Interaction Designer.
o View Interaction Information: displays the trigger's parent interaction's details in the File Information Dialog.
