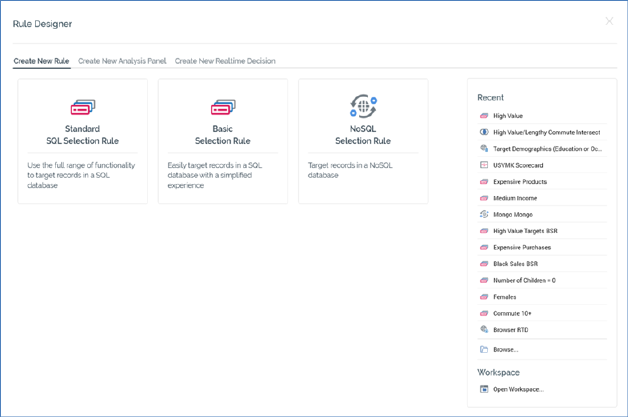

The Rule Designer Start Page is shown upon invocation of Rules at the quick access menu, and also on clicking Add new Rule or Panel at the Rule Designer toolbar. It contains the following:
Three tabs facilitate the creation of new files:
•Create New Rule (options available as appropriate)
o Standard SQL Selection Rule
o Basic Selection Rule
o NoSQL Selection Rule
•Create New Analysis Panel
o Chart Analysis Panel
o Crosstab Analysis Panel
o Pivot Table Analysis Panel
o Venn Diagram Analysis Panel
o Word Cloud Analysis Panel
•Create New Realtime Decision
o Attribute List Realtime Decision
o Database Realtime Decision
o Decision Scorecard
o Facebook Realtime Decision
o JSON Realtime Decision
o Model Score Realtime Decision
o Orchestration Realtime Decision
o Web Realtime Decision
The following additional options are also available:
•Recent: lists recently-accessed Rules, facilitating the opening of the same.
•Browse: displays the Open Rule File System Dialog, allowing you to select a rule to open.
•Workspace section: exposing a single option:
o Open Workspace
A Close button is shown at the top of the Start Page. Clicking it removes the Start Page from display, and displays the main Rule Designer interface.
