The Model Score Bands tab allows you to provide bands in order to categorize records in terms of their model scores. Provision of bands in a model project is optional - a model project without bands can be used to configure a Model Score realtime decision. For more information, please see the Realtime Decisions documentation.
The tab contains a list of model score bands.
An Add Band button is displayed at the bottom of the list. Clicking it displays a sub-menu, which exposes the following:
•Add Discrete Band: clicking this button adds a new discrete band to the list. A discrete band allows for the specification of specific values to define band membership.
•Add Value Range Band: clicking this button adds a new discrete band to the list. A value range band allows you to specify a range of values to be used to determine band membership.
The list of bands is empty by default, and a message is displayed therein:

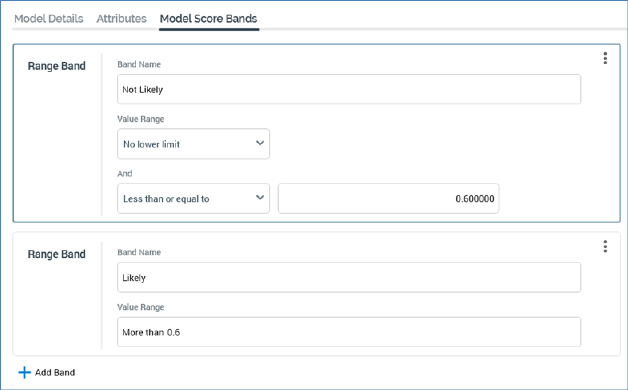

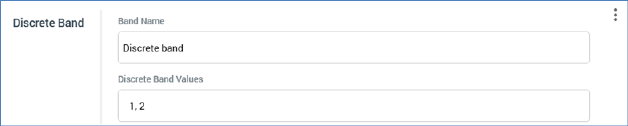

The list is used to display the bands associated with the model project. Discrete bands are shown as follows:

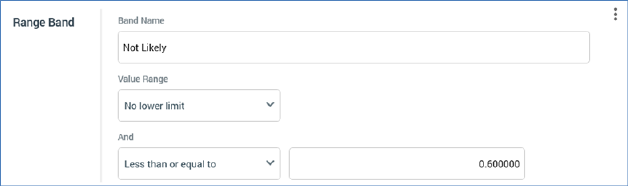

...and value range bands as follows:
An Options menu is displayed to the right of a band, exposing the following:
Validation is employed to ensure that bands are configured with mandatory values and make logical sense.
On selection of a Cluster model, one model score band is added automatically per cluster generated by the same. Bands are named 'Cluster n' (where n is an incrementing integer). Each band is mapped to single discrete value exposed by the model.
