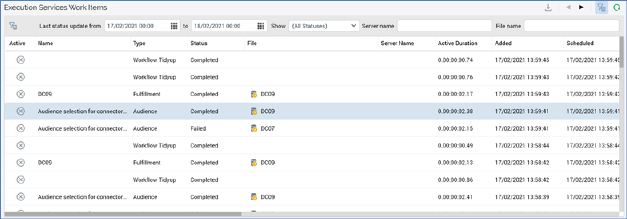

The lower grid lists work items associated with the listed Execution Service(s).
A toolbar displayed above the grid exposes the following options:
•Export Search Results: this button is enabled when results are displayed in the grid. Invocation displays the Save Execution Service Search Results Windows file system dialog. The default filename provided is 'Execution Service Search Results [yyyy-mm-dd].txt'. You can click Save to initiate the file save (the file is saved directly, without creation of a job). The file itself contains a tab-delimited dump of the data displayed in the grid. A header row is provided.
•Previous page: this button is enabled when the list of work items will not fit into a single page, and a page other than the first is displayed. Invocation displays the previous page's worth of data.
•Next page: this button is enabled when the list of work items will not fit into a single page, and a page other than the last is displayed. Invocation displays the next page's worth of data.
•Show/Hide Execution Service Search Options: this toggle button controls display of the search options toolbar. It is selected by default.
•Search: clicking this button refreshes the grid with only work items that match the supplied criteria.
The search options toolbar exposes the following filter options:
•Last status update from: this date/time defaults to today, 12:00AM.
•[Last status update to]: this date/time defaults to tomorrow, 12:00AM.
•Show: this dropdown allows you to filter the list of work items by status. It exposes the following values:
o (All Statuses): the default
o New
o Initializing
o Running
o Suspended
o Completed
o Failed
o Terminated
o Invalid
•Show/Hide Execution Service Search Options: a toggle button, which, when selected, displays the Execution Service Search Options dialog.
The dialog allows you to filter the list of work items by:
o Server name
o File name
The read-only grid lists work items instances matching the current search criteria. The number of records shown per page is controlled by system configuration setting MaxTableSearchRows. Records are presented in descending Added order.
The following columns are displayed:
•Active: a tick or cross icon
•Name
•Type
•Status
•File: only if relevant; if populated, accompanied by Open Latest Version and Open File Location buttons
•Server Name: only shown when activity is currently taking place
•Active Duration: days, hours, minutes, seconds
•Added: date/time
•Scheduled: date/time
•Last Status Update: date/time
•Last Status Message
•Execution ID: GUID
•Workflow Association Instance ID: only if relevant
•Activity ID: GUID if relevant
•Workflow Added: date/time
•Workflow Active: a tick or cross icon
•Workflow Execution Status
•Execution Service ID: GUID; only shown when activity taking place
•File ID: GUID; only shown when relevant
You can sort data in the grid by clicking on a column header.
.
