When configuring a data process block, the other tabs shown within the Audience Block Builder’s depend on whether the selected data process project’s Use results in audience property is checked or unchecked.

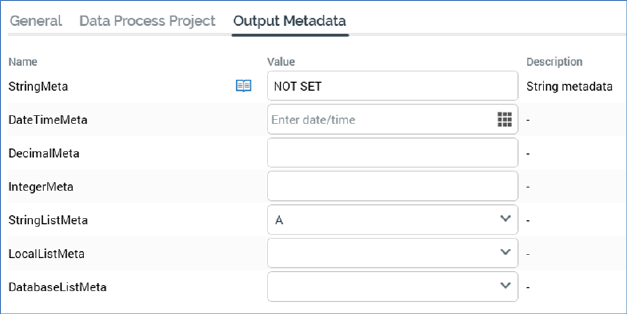

If the property is unchecked, or if a data process project has yet to be selected, the tab is named Output Metadata, and can be used to manage the block’s metadata:
If the data process project’s Use results in audience property is checked, Output Options and Outputs tabs are displayed.
The Output Options tab is documented in the Configuring a Split using the Audience Block Builder – Output Options Tab section.

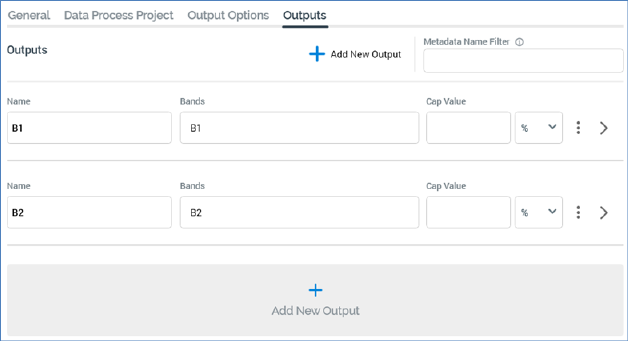

The Outputs tab is similar to the Split block equivalence, as documented in the Configuring a Split using the Audience Block Builder – Outputs Tab section.
Its functionally mirrors its Split block peer, with the latter’s Selection Rule property being replaced by the following:
•Bands: this property allows you to define that records that fall within the selected data process project bands are to be included in the output.

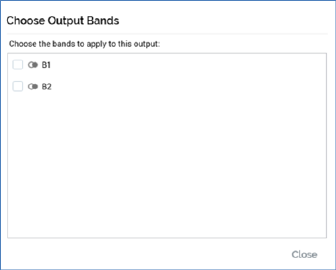

If the selected data process project contains no bands, the text ‘N/A’ is shown. Otherwise, ‘[n] band(s)’ is displayed (where [n] is number of bands selected for the output. You can click the same to select bands to assign to the output using the Choose Output Bands dialog.
Note that provision of outputs at a data process block is optional.
