Configuring a Data Process Block using the Audience Block Builder – Data Process Project Tab

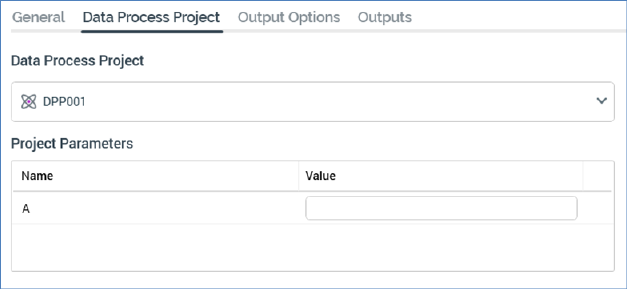

When configuring a data process block, the Audience Block Builder’s Project tab contains Data Process Project and Parameters sections.

Graphical user interface, text, application

Description automatically generated

The Data Process Project section exposes a single property:

      Data process project: this property is set as per the equivalent property shown at a data process block.

The Project Parameters also exposes a single property:

      Project Parameters: a grid listing all of the selected data process project's project parameters is displayed.

A message is displayed when a Data process project is yet to be selected, or when the selected data process project has no configured project parameters:

A picture containing text

Description automatically generated

For each project parameter, the following are displayed:

Name: read-only

Value: the parameter's default value is shown (if appropriate).  You can update the parameter's value using a data type-appropriate control.  If a string parameter that supports a list of values, you can select a value using a dropdown.
